Reverse Tunneling

Diagram

Any HTTP or SSH route can be configured to route upstream traffic through authenticated SSH clients using reverse port-forwarding.

When a route is in this mode, Pomerium will not route traffic for that route directly to upstream servers. Instead, SSH clients can connect to Pomerium and register themselves as upstream endpoints for the route (for as long as they remain connected and authenticated). Then, when a downstream client connects to the route, Pomerium will tell a connected SSH client to open a connection to the "real" upstream server via reverse port-forward.

This uses the Native SSH Access feature, and works best with the standard OpenSSH client.

Example Scenario​

Suppose Alice is running a web server locally, and wants to allow Bob to connect to it. Both Alice and Bob can reach a Pomerium server, but the Pomerium server cannot reach Alice's local web server. If Alice tries to configure a route's to address to http://localhost:8080, the Pomerium server will attempt to connect to localhost:8080 from wherever it is running.

      Scenario 1a

Instead, Alice can configure the Pomerium route with the upstream_tunnel option. Here, a second Pomerium policy must be configured, ssh_policy. This second policy controls who can connect as an upstream for this route. Standard SSH policy rules can be used here; see SSH Policy Criteria for details.

Once the route is configured, Alice connects to the Pomerium server via SSH and enables reverse port-forwarding with the -R flag (e.g. ssh -R 0 pomerium.example.com, assuming standard OpenSSH) and authenticates successfully. Then, Bob connects to the route. Pomerium will request that Alice's SSH client open a connection on localhost:8080. The SSH client can reach the local web server, so the connection can be established.

      Scenario 1b

Setup​

  1. Follow steps 1-3 in Native SSH Access - Setup to configure the SSH address, host keys, and user CA key. Note that SSH routes are not necessary to be able to use this feature, so steps 4 and 5 can be skipped.

  2. Enable the ssh_upstream_tunnel runtime flag:

    config.yaml
    runtime_flags:
      ssh_upstream_tunnel: true

Detailed Usage​

Connecting With an SSH Client​

Reverse tunneling is only enabled when connecting to Pomerium without a route, the same way as the Internal CLI is accessed (see Using the Internal CLI).

It is not necessary to interact with the Internal CLI in reverse tunneling mode (you can pass -N to tell ssh not to run any commands at all), but by default the tunnel status TUI will be displayed when no command is given and -R was set on the command line.

For example, if your Pomerium server is hosted at pomerium.example.com, your ssh command would look like:

$ ssh -R ... pomerium.example.com
#        ^^^ see below for '-R' syntax

When connecting to a SSH route directly, any port-forwarding requests are sent directly to the upstream SSH server, and are not interpreted by Pomerium. For example, the following command does not enable reverse tunneling:

# The upstream server for the route 'some-ssh-route' handles the -R request here
$ ssh -R ... some-ssh-route@pomerium.example.com

OpenSSH Client Syntax​

Reverse port-forwarding in OpenSSH is controlled with the -R flag. The syntax of this flag can take several forms, following a similar structure:1

Syntax

The argument to -R consists of either one or two name:port addresses, separated by a :. The remote address (first) describes the client's request to the server. The local address (second), if present, is used only by the client to control the destination of an incoming request. The local address is not sent to the server.

If the local address is present, the server has no control over the destination address. The SSH client forwards the request to the hostname and port given on the command line. If the local address is omitted, however, the server requests the destination address for each new connection. This is referred to as "dynamic port forwarding".

note

When the local address is omitted, the remote port should always be set to 0. The opposite is also true; when providing a local address, the port should not be 0. This is Pomerium-specific and is covered in more detail further below.

note

OpenSSH also supports unix socket forwarding, which is not supported by Pomerium at this time.

How Pomerium Interprets the Remote Address​

Each instance of -R on the command line makes a separate request2 to the server, containing the remote name:port address. The server is free to interpret this in an application-specific way. In Pomerium's case:

  • The name represents a route hostname. This is the host part of the from URL in a route, not including the scheme.

  • The port functions as a protocol selector. If the port is 443, it will match HTTP routes. If the port is 22, it will match SSH routes. These are fixed values and do not change based on the ports Pomerium is listening on.3

Dynamic Port Forwarding​

Dynamic port forwarding is enabled only when the client requests port 0 in the remote address.4

This mode allows a single SSH client to port-forward multiple routes at the same time, and not require manual updates when the Pomerium configuration changes.

When dynamic port-forwarding is used, the name section of the remote address will accept a glob pattern to match route hostnames. All matching routes for which the current user is authenticated will be handled by the client.

tip

If multiple to URLs are configured in a route, Pomerium will load-balance between them by alternating which destination host:port is requested in a round-robin strategy. This only applies when dynamic port-forwarding is used.

warning

Exercise reasonable caution when using dynamic port-forwarding. Treat this as you would any other network tunneling tool. Always verify the SSH host key fingerprints of the server you connect to!

Static Port Forwarding​

When a local address is present, new connections will always be routed to that address and port. In this way, the local address and port can differ from the address and port configured in the route's to URL. The to URL is not completely ignored, however: it is used to configure the expected upstream protocol for the route, and Host Header Settings still apply.

Syntax Examples​

Syntax Examples

Operating the TUI​

Configuration

The screenshots in this section are using the following route definitions:

routes:
  - from: https://https-route.example.com
    to: http://localhost:8080
    allow_public_unauthenticated_access: true
    upstream_tunnel:
      ssh_policy:
        - allow:
            and:
              - email:
                  is: user@example.com
    health_checks:
      - http_health_check:
          path: "/health"
        timeout: 0.5s
        interval: 10s
        unhealthy_threshold: 1
        healthy_threshold: 1
        always_log_health_check_success: true
        always_log_health_check_failures: true

  - from: https://grpc-route.example.com
    to: h2c://localhost:8079
    allow_public_unauthenticated_access: true
    upstream_tunnel:
      ssh_policy:
        - allow:
            and:
              - email:
                  is: user@example.com
    health_checks:
      - grpc_health_check: {}
        timeout: 0.5s
        interval: 10s
        unhealthy_threshold: 1
        healthy_threshold: 1
        always_log_health_check_success: true
        always_log_health_check_failures: true

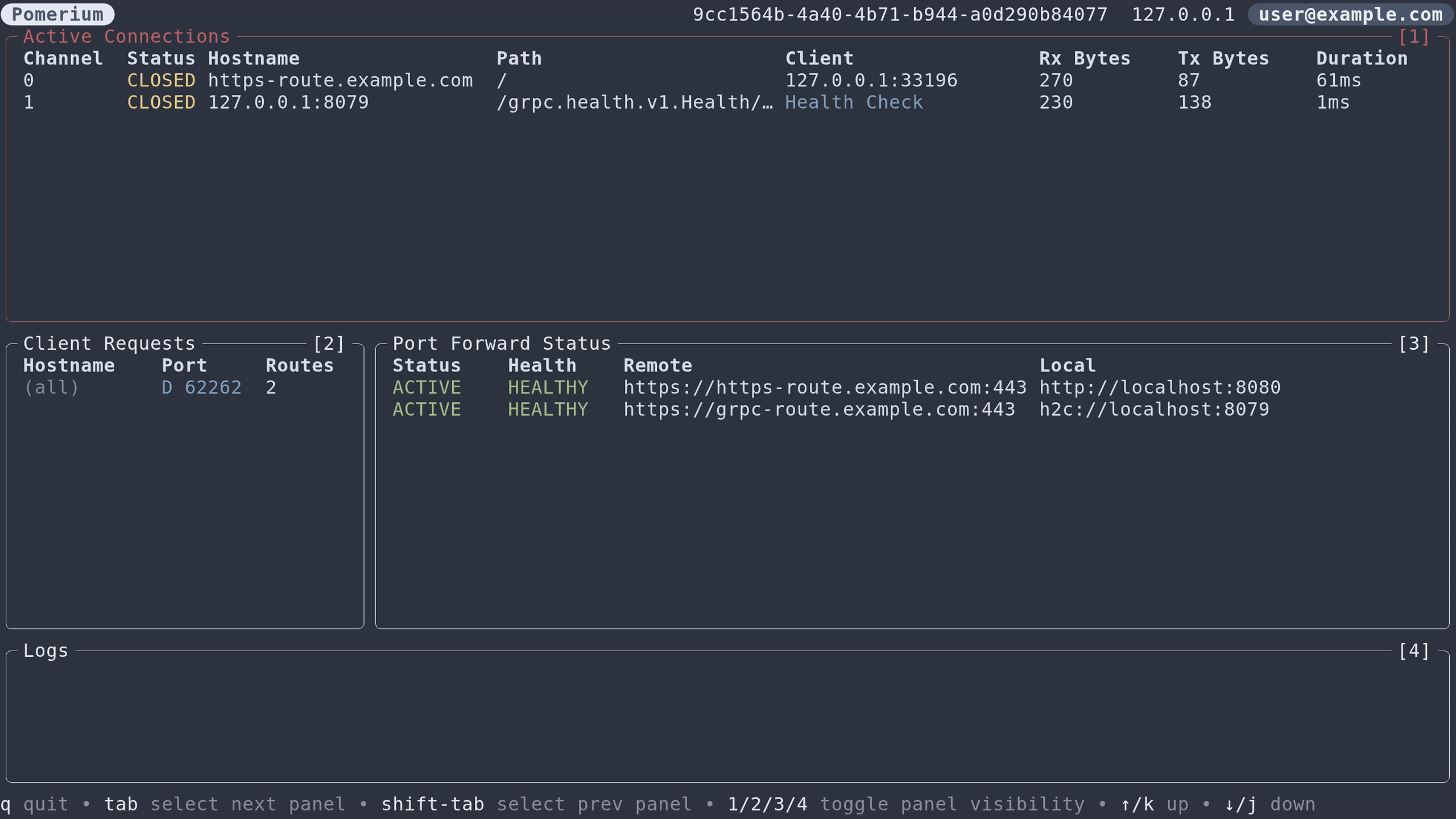

When connecting to Pomerium as a reverse tunnel upstream, the tunnel status TUI will be displayed by default.

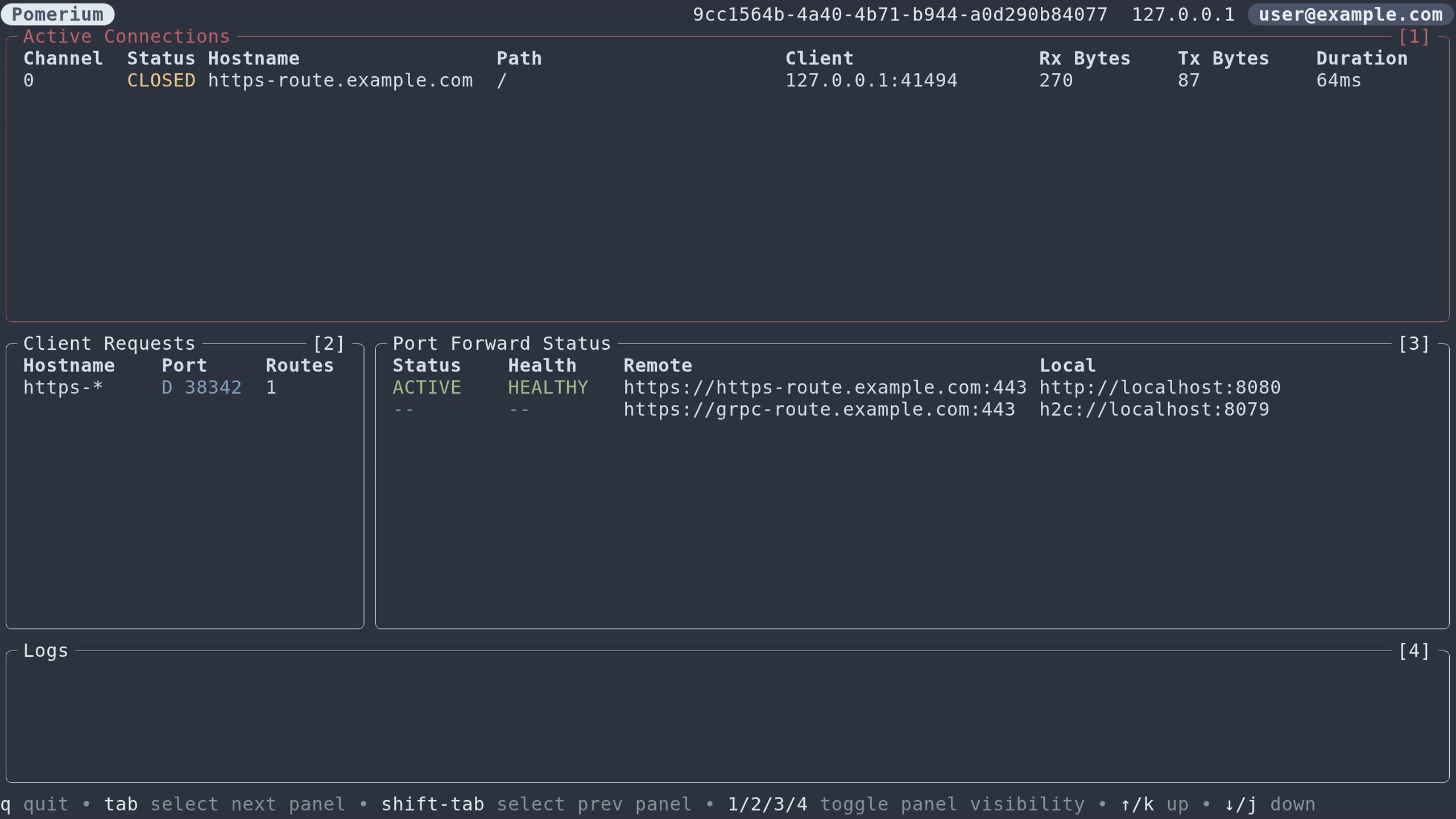

TUI HTTPS Only

Active Connections​

The Active Connections panel displays live connections through the reverse tunnel. For HTTP routes, the hostname and path in the request will be displayed. For SSH routes, the route name will be displayed.

The downstream client IP is also displayed in this panel, along with bytes sent through the tunnel in both directions (Rx = downstream to upstream, Tx = upstream to downstream), and the duration of the connection. Connection stats are updated periodically while the connection is open, and immediately when the connection is closed.

Client Requests​

The Client Requests panel shows how Pomerium interpreted each -R flag passed on the ssh client command line. Each instance of -R will show up as a separate row in this table.

The Hostname column shows the name section of the name:port syntax for the remote address. If the name was *, or empty, the request will show (all).

The Port column shows the port section of the name:port syntax for the remote address. If the port was set to 0 on the command line, indicating dynamic port forwarding is enabled, it will be displayed as a random number, prefixed with D, for example: TUI All Routes

tip

Dynamic port numbers are known to the SSH client. They can be used to identify specific requests to deactivate them at runtime using the escape console. See OpenSSH Escape Commands.

The Routes column shows how many routes (of those displayed in the Port Forward Status table) were matched by each request.

Port Forward Status​

The Port Forward Status panel displays routes with upstream tunneling enabled (via the upstream_tunnel route option) that the current user is authorized to connect to as an upstream endpoint (based on the route's ssh_policy). Routes that the user would not be authorized for are not displayed in this table, whether or not the user's request patterns match those routes.

The Status column shows whether that route is matched by any of the client requests. If it is, it will display ACTIVE.

For routes with health checks enabled, the Health column shows the current state of those routes as determined by the configured health checks. This state is either HEALTHY, DEGRADED, or UNHEALTHY (see Envoy docs). If the route is currently failing its health checks, it will show INACTIVE in the Status column.

Logs​

The Logs panel shows system messages and warnings.

Non-interactive clients​

The TUI will be automatically disabled for non-interactive clients. To disable it while running an interactive client, pass the -N flag to ssh.

Terminal Feature Support​

The TUI has full mouse support for terminals which support it (all modern terminals do).

Some features, such as the ability to copy to the clipboard, are not supported by all terminals. If your terminal supports this feature (see here for an unofficial support matrix), you will have the ability to copy URLs to the clipboard in the right-click context menu of some table rows.

Compatibility​

This feature can be used with any HTTP route, as well as SSH routes. The tunneling mechanism is transparent to any protocols running on top of TCP, so no special considerations are needed to make use of TLS, GRPC, etc.

UDP is not supported.

Advanced Usage​

Health Checks​

If routes have health checks defined, the health check requests originating internally within Envoy are also routed through the tunnel. Downstream requests will then be able to fail-fast when Envoy knows the real upstream is unhealthy. If multiple SSH upstream endpoints are connected, Envoy can prioritize routing traffic to healthy endpoints (subject to Panic Threshold configuration; see also Supported Health Checks Parameters).

High Availability​

Multiple SSH client instances can connect to Pomerium and register as upstream endpoints for the same route. Envoy will load-balance between all connected SSH clients. The following diagram illustrates this:

      Reverse Tunnel HA 1

In addition, multiple to addresses in a Pomerium route can be used to load-balance to the real upstream servers, through any connected SSH clients:

(Note: this works only in conjunction with dynamic port forwarding)

      Reverse Tunnel HA 2

These strategies can be combined, resulting in Pomerium load balancing between SSH clients, then each SSH client load balancing between upstream servers:

(Note: this works only in conjunction with dynamic port forwarding)

      Reverse Tunnel HA 3

Deploying as a Service​

The OpenSSH client can be run as a headless service to manage port-forwards in the background.

The following example systemd user service will connect to a Pomerium server and request to port-forward all authorized routes. It will restart upon connection loss.

~/.config/systemd/user/reverse-tunnel-client.service
[Unit]
Description=Pomerium SSH Reverse Tunnel Client

[Service]
Type=forking

# -v = verbose (debug1); new connections on forwarded ports will be logged
# -y = send logs directly to syslog
# -f = fork after authentication; this is used in conjunction with Type=forking
#      to signal to systemd that the service is ready.
# -N = do not run any commands, only forward ports.
ExecStart=/usr/bin/ssh -vyfN -R 0 pomerium.example.com
Restart=on-failure
TimeoutSec=60s
OAuth Login

If you do not have an active Pomerium session associated with your ssh key, or the session is expired, the service will remain in startup and wait for the session to be renewed. You can either check the journal logs for the service to obtain the sign-in URL, or run another ssh command separately (e.g. ssh pomerium.example.com -- whoami) and sign in, after which the service will automatically be authenticated and continue on its own.

note

If your routes use health checks, the health check connections will show up in the debug logs too. This could be noisy depending on how many routes/health checks you have configured.

In the above example, failed health check errors will be logged with -v. Without -v, they will not show up unless -y is also used.

OpenSSH Escape Commands​

The OpenSSH client has a built-in system for running basic commands during an active session. This can be used to, among other things, modify port-forwarding requests without needing to restart the ssh client. Details on how to use this can be found in the "Escape Characters" section of man 1 ssh. (online docs here)

Troubleshooting​

'-R' Syntax​

Common mistakes that can be made with the -R syntax:

1. Dynamic port forwarding request mismatch​

For each -R request, both the Pomerium server and the SSH client must agree whether that request should use dynamic port forwarding or not. This is controlled by the syntax of the -R argument:

  • Pomerium enables dynamic port-forwarding when the remote port is 0.
  • The SSH client enables dynamic port-forwarding when the local host:port half of the -R argument is omitted.

If the remote port is 0, but a local host:port is also set, Pomerium will be expecting dynamic port-forwarding, but the local ssh client will not be. This will cause downstream clients (including internal health checks) to time out.5 The TUI will also display a warning with hints on how to fix the command:

ssh -R https-*:0:localhost:8080 example.com TUI Warning 1

If the remote port is not 0, and the local host:port is omitted, then the local ssh client will be expecting dynamic port-forwarding, but Pomerium will not be. This will result in immediate downstream errors (not timeouts). The TUI will also display a similar warning:

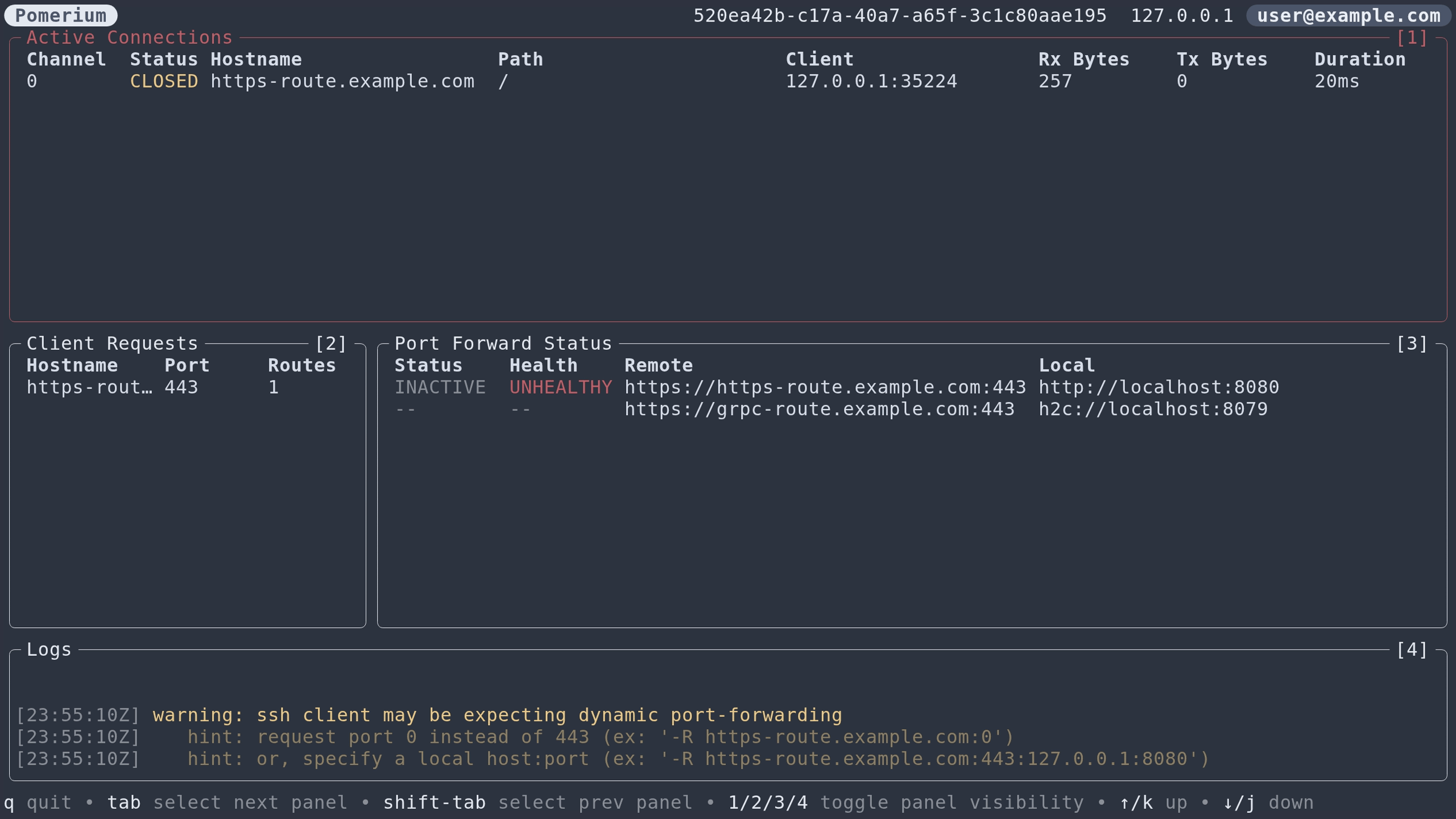

ssh -R https-route.example.com:443 example.com TUI Warning 2

2. Incorrect wildcard usage​

Wildcards (* and ?) in the remote address are only functional when remote port 0 is also set. A request such as -R *.example.com:443 will match a Wildcard From Route of the literal form "https://*.example.com".

When remote port 0 is set, * characters in these routes have no special meaning, and are considered to be part of the hostname.

For example, the route from: "https://*.example.com", would be matched by:

  • -R *.example.com:0 (* matches the * in the from URL)
  • -R ?.example.com:0 (? matches the * in the from URL)
  • -R *.com:0 (* matches *.example in the from URL)

Footnotes​

  1. This is not an exhaustive list; it is only meant to illustrate the basic syntax structure as interpreted by OpenSSH. There are Pomerium-specific rules (e.g. for port numbers) not depicted here which are discussed in more detail later. ↩

  2. These requests (instances of -R, and also -L/-D for local forwarding), are called "permissions" internally in OpenSSH. Pomerium also uses this term in some places. ↩

  3. This was done to avoid confusion related to port remapping when running Pomerium in a container, as by default the Pomerium container runs as non-root and doesn't bind directly to ports 443/22. If additional non-http protocols become supported, they will also be assigned unique "port" numbers. ↩

  4. This is Pomerium-specific logic. OpenSSH itself enables dynamic port-forwarding when the local address is omitted. This changes the protocol slightly, but OpenSSH does not inform the server of this (only the remote address is ever sent to the server, regardless of mode). Pomerium will detect a protocol mismatch and display a warning to the client in this case, but there is no way to detect it until a connection is attempted.
    Furthermore, OpenSSH also treats port 0 differently in its own way: it expects the server to reply with a dynamically allocated port in response to the client's port-forward request. This is a separate mechanism however, and exists to model real port-binding behavior. Pomerium is, of course, not actually binding real ports to facilitate this; instead, unique random "port numbers" are generated to identify individual port-forward requests made by the client. These numbers show up in the TUI, and can be used in the OpenSSH escape console to revoke a port-forwarding rule at runtime. ↩

  5. Depending on the upstream server and protocol, the channel may or may not be held open until the timeout. It is normal to see CLOSED status with a short duration in the TUI, yet the downstream client is stuck waiting. You may also see a channel with OPEN status, which transitions to CLOSED at the same time the downstream times out. ↩
